Topic: Homemade Dremel Table Saw
Share & "Like" This Topic on Facebook!
JohnBoy
Joined: May 14, 2008
Topics: 81   Replies: 475
posted on Oct 27, 2008 01:50 PM:
My Archive Category
My Website

When I was creating the iron balusters over the connecting halls of my train station, I had to create 24 little newel posts. These were made with simple 5/16" square wooden dowels, but each one needed a vertical groove cut into it in order for the iron fence pieces to fit into it. That meant I needed to cut 48 of these grooves! After trying a few by hand with the Dremel (and nearly sacrificing a thumb to the cause), I decided to make a tool instead.

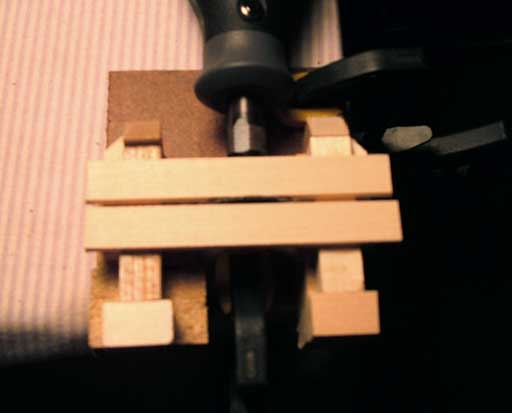

I started with a simple base of masonite, with the textured side down as this gives it more traction. I clamped my Dremel tool down over the masonite base, and basically just started building a frame around it. I started with two pieces of scrap 3/4" thick particle board, and cut these into smaller blocks. I marked where the cutting wheel would go, and then cut grooves into these particle board blocks using a (regular) table saw.





Those grooves are not really necessary, but they are helpful when re-assembling this mini table saw. I glued these two grooved particle board blocks onto the masonite.

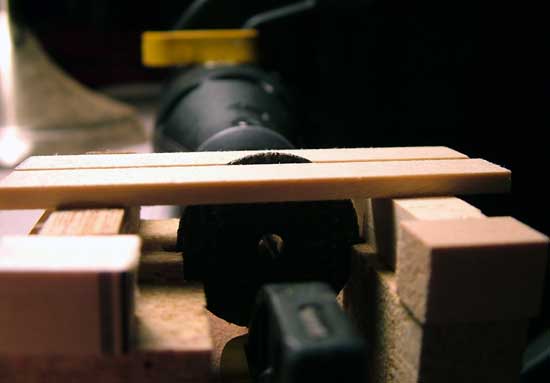

Separately, I started building out the table saw surface. Basically I just needed a smooth, flat surface with a slot in it for part of the cut-off wheel of the Dremel to poke through. Two pieces of 1/8" x 1/4" hobby wood served well. I glued these into place over two 5/8" square dowels.

I then went about gluing pieces of wood around where this table surface unit would sit on top of the particle board blocks. In doing this, I've made it so that the table surface unit is modular - it just drops in place and can be removed later. This enables me to potentially build different table surfaces (at varying heights) to accommodate different blades and different blade heights.

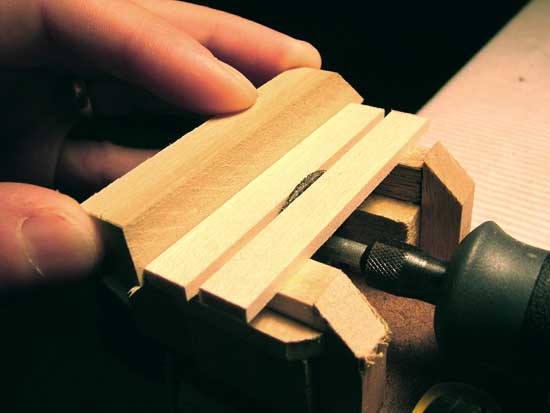

By sliding a scrap piece of wood up to the elevated table surface, I create a back-stop for a fence. By being clever with additional pieces of scrap wood, I can create fences with a varying widths to the blade.





Anyway, this little homemade device cost me next to nothing, served very well for the newel post grooves, and kept me from losing any digits. (So far.)

John




King Mouse
Joined: Sep 28, 2009
Topics: 3   Replies: 14
posted on Feb 24, 2010 10:31 AM:
My Archive Category
My Website

John,

Nice tip!

Dave




enginearjoe
Joined: Jul 5, 2010
Topics: 3   Replies: 5
posted on Oct 7, 2011 09:56 PM:
My Archive Category

John, my old carpentry boss said that anytime you need to make repetative, precise, or time consuming, etc., cuts, it is worth wild to make a jig. Safety always pre-empts the rest of the reasons. This jig could get more use than most, Joe




AG
Joined: Nov 19, 2009
Topics: 42   Replies: 61
posted on Oct 8, 2011 08:23 PM:
My Archive Category

Cool!
thank for sharing!!




DAVE UPTON
Joined: Oct 4, 2011
Topics: 5   Replies: 103
posted on Oct 16, 2011 02:33 PM:
My Archive Category
My Website

My kind of ingenuity - well done John!




t8afao
Joined: Jul 23, 2010
Topics: 39   Replies: 64
posted on Oct 17, 2011 10:54 PM:
My Archive Category
My Website

sweet, Thanks for the new tip




Mark B
Joined: Oct 13, 2011
Topics: 6   Replies: 28
posted on Oct 20, 2011 02:36 AM:
My Archive Category

Thanks for sharing this John. I just built a mini version of yours but will upgrade asap as i'm building a lot of trestle-truss work. This will save time and keep my fingers safe for playing guitar! Here is a shot of some of my trestles supports. All hand made out of ripped redwood. They look natural and don't need stain or paint.

Mark B.
